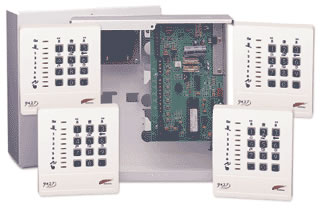

The 9448UK-60 has been designed to meet The most professional alarm installation standards and yet it is easy to install, using simple but secure wiring.
• Easy to operate, the 9448UK-60 has full and part set facilities, the ability to change access codes and to connect additional remote keypads to give a high level of security and total peace of mind.
• Up to 7 zones of protection (zone 7 pre-programmed as entry/exit)
• Global tamper
• Bell, strobe and programmable outputs
• Accepts up to 4 remote keypads
• 10 event log
• Communication output
• BS 4737 compliant
Technical Specifications
Electrical:
Quiescent Power - Panel 55mA
Quiescent Power - Keypad 20mA
Aux DC Power 500mA @ 13.8v
Standby Battery 12 volt, 7Ah lead acid gel type rechargeable
Physical:
Environment -10°c to 55°c
Dimensions (hxwxd)<
Control Panel 240*240*90mm
Keypad 115*115*28mm
Weight - Control Panel 3.3kg
|
